Availability Route

An availability route sends an entity only to a destination that can currently accept it. Several availability routes can leave one source; they are tried in priority order, and pair well with a renege route for entities that never find room.

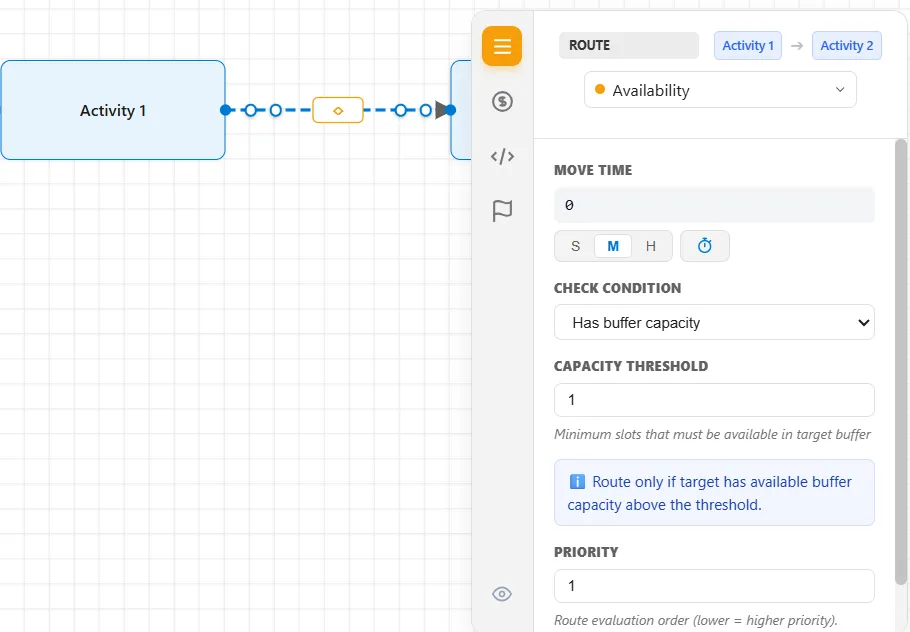

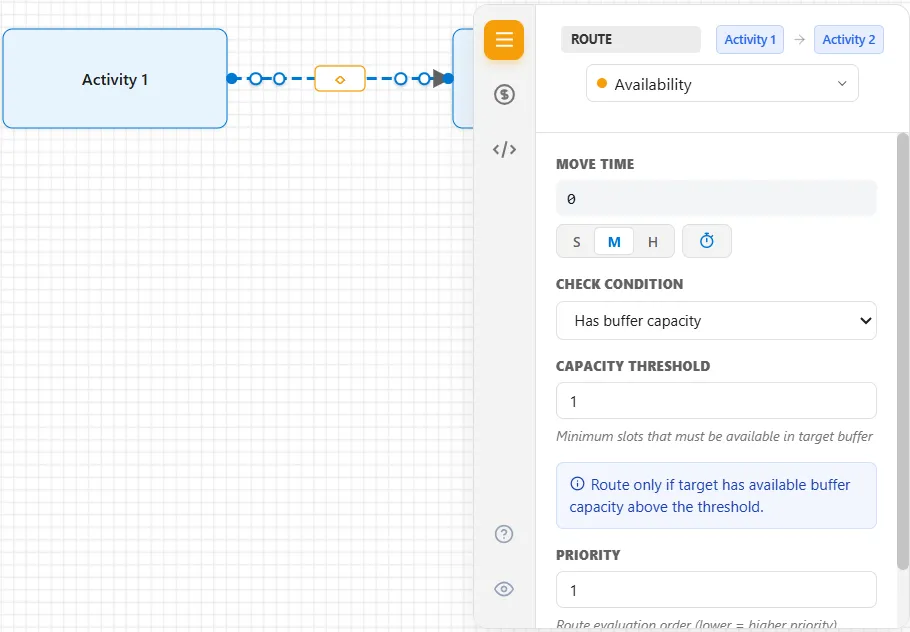

Options

• Availability check: what counts as available: the destination has buffer capacity, a resource is available, or a custom expression you write (using functions like FreeCap(), FreeUnits(), Contents(), or Utilization()).
• Capacity threshold: how much free capacity is required (default 1).
• Resource requirements: the resources and quantities that must be free, when checking resource availability.
• Priority: the order in which this route is tried against the other availability routes from the same source.

For the Cost, Action Logic, and Seed tabs, see Cost, Logic, and Seed.
