Random Selection of 4 Required Activities

When you need to randomly select from a group of activities, but ensure that all activities are performed before moving on.

Random Selection of 4 Required Activities model image

Where to Find the Model Object

The following model object can be found in the model objects directory:

  • Flow Control \ Random Selection of 4 Required Activities

Difficulty Level

  • Ease of Use: Easy
  • Ease of Modification: Moderate

How to Use the Model Object

  1. Open Your Model: Open your model or create a new blank model.
  2. Insert the Model Object into Your Model
    1. Locate the model object Random Selection of 4 Required Activities and select the insert button.
    2. Move the cursor to the point of insertion and left mouse-click. The upper left corner of the model object will be inserted at the location of the mouse-click.
  3. Connect to Your Model
    1. Connect the route arriving into the Waiting Room activity to your source of incoming entities.connect to Random Selection of 4 Required Activities
    2. Connect the Yes route to your downstream location.from Random Selection of 4 Required Activities

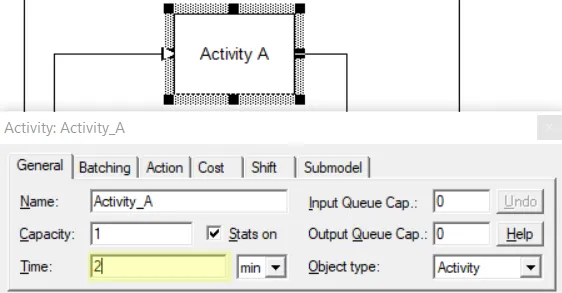

    3. Adjust each activity time as appropriate for your process.set time in Random Selection of 4 Required Activities
    4. Change the Wait Until statement located in the first route to match the maximum number of patients you want to allow into the group of activities at one time.update action logic Random Selection of 4 Required ActivitiesCurrently set to process less than four entities at a time.
    5. If you change the number of activities, ensure you alter the action logic in the Route to Preliminary Activities activity to reflect that change. Also note the action logic in the routes leaving each activity.

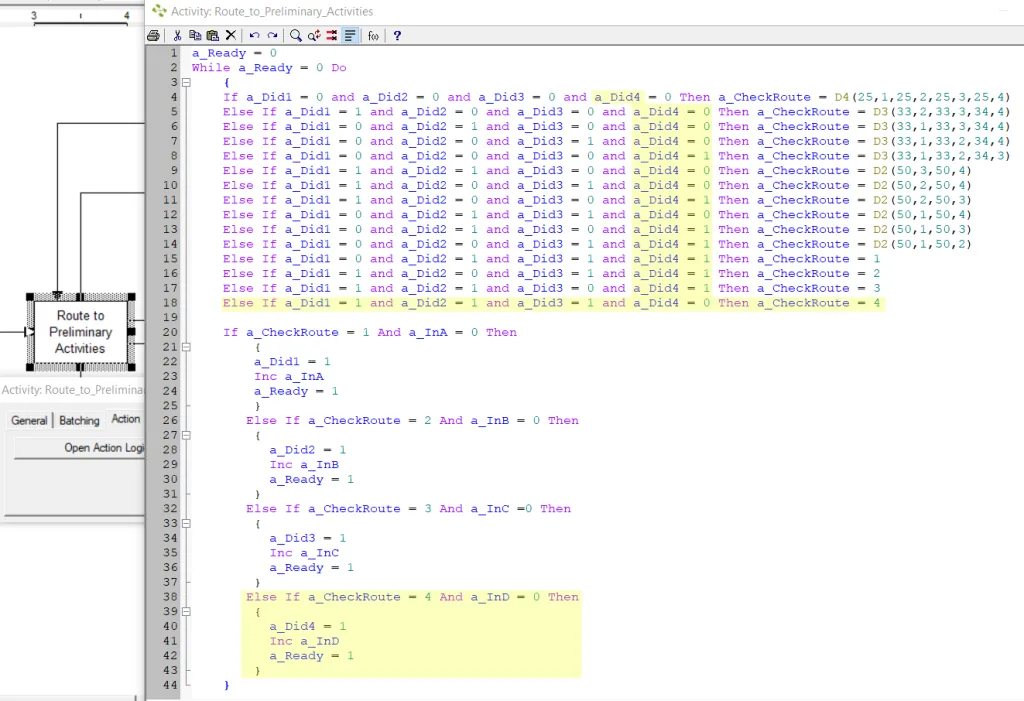

      The action logic in this model object is designed specifically for 4 activities. However, you may change the number of activities used as long as you make the appropriate changes to the action logic in the “Route to Preliminary Activities” activity and in the routes exiting each activity.change action logic in Random Selection of 4 Required ActivitiesAdding action logic to add the fourth activity.

  4. Completion: The model object is now integrated into your model, you should now be able to save and then simulate the model.

Controls Usage

Attributes:

  1. a_Did1-4: Activity A, B, C or D has been performed.
  2. a_InA-D: Number of patients in Activity A, B, C or D.
  3. a_CheckRoute: Route to check for availability.
  4. a_Ready: Flag to exit the While…Do loop, 0 means don’t exit, 1 means exit.

Scenario Parameters:

  1. v_InProcess: The number of patients currently in the model object.
